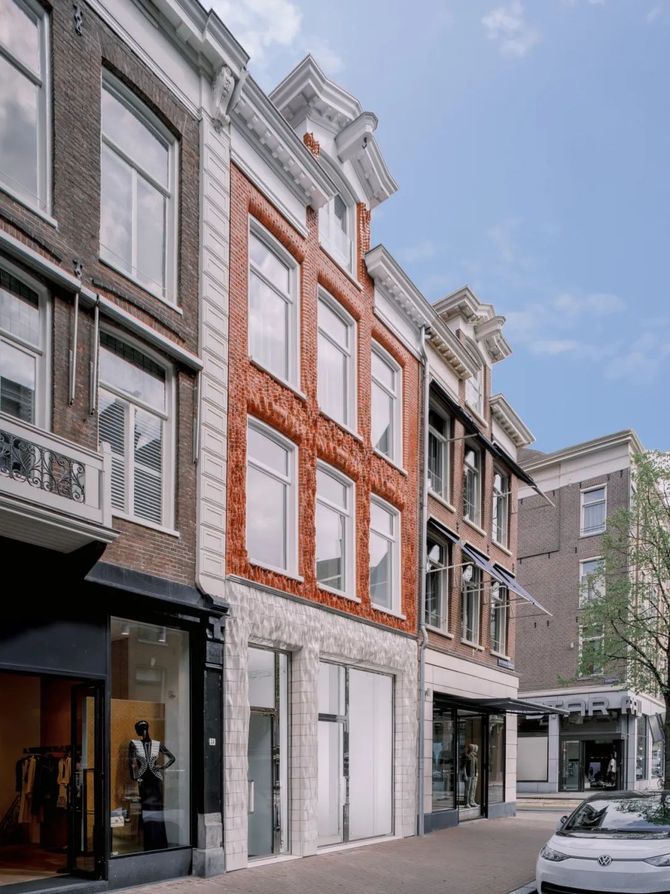

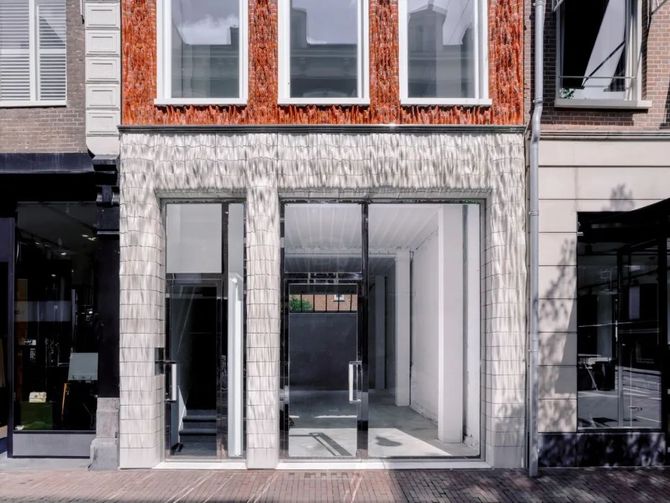

由建筑设计公司Studio RAP推出的最新项目利用了他们自己定制的3D打印技术，将阿姆斯特丹的P.C. Hooftstraat上的一座精品店立面进行了改造。

The latest project from the architectural design firm Studio RAP utilizes its own bespoke, custom-built 3D printing technology to transform a boutique facade on Amsterdam’s P.C. Hooftstraat.

陶瓷之家通过将传统和创新无缝融合，重新引入定制细节到建筑领域，重新塑造了建筑表达形式。该工作室对当代建筑设计的创新方法采用了自己制造场所中的最先进数字制造工艺，用于打印每一块定制的3D打印陶瓷瓷砖。这为著名的购物街的现有历史建筑注入了新的设计语言。

The Ceramic House reshapes architectural expression by seamlessly blending tradition and innovation, reintroducing bespoke details to the realm of architecture. The studio's innovative approach to contemporary architectural design uses state-of-the-art digital fabrication processes conceived in its own manufacturing premises to print each bespoke 3D-printed ceramic tile. This enriches the famous shopping street's existing historic architecture with a new design language.

该设计采用算法设计、3D打印陶瓷和手工上釉相结合的方式，形成了令人振奋和具有纹理感的效果，灵感来自于针织服装的工艺。

The resulting design, achieved through algorithmic design, 3D-printed ceramics, and artisanal glazing, is exciting and textural, inspired by the craft of knitting garments.

创新算法设计

Innovating Algorithmic Design

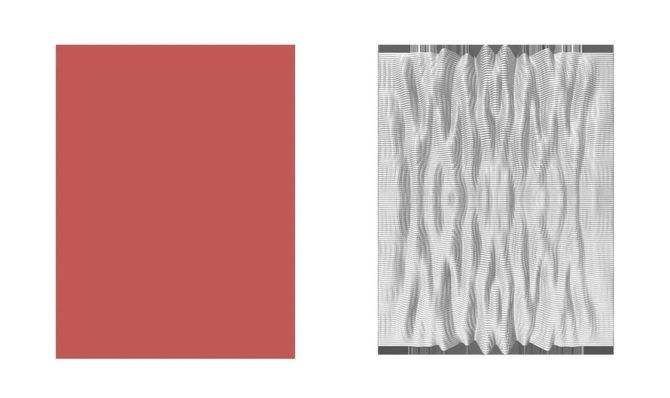

通过使用内部设计的数字设计算法，陶瓷之家对阿姆斯特丹这座历史城市中的釉陶瓷的装饰特性和设计词汇进行重新诠释。

Using digital design algorithms designed in-house, the Ceramic House explores a reinterpretation of the decorative qualities and design vocabulary of glazed ceramics in the historical city of Amsterdam.

▽结构轴测, structure axonometric

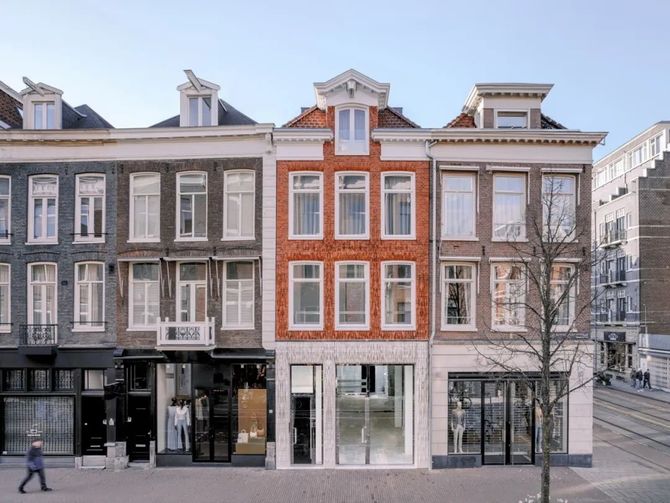

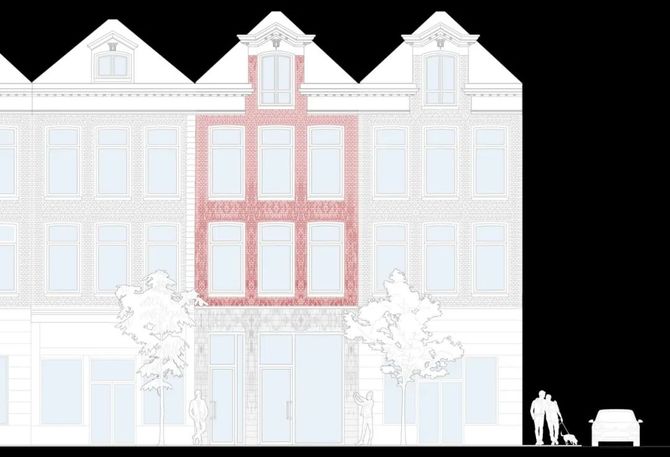

Studio RAP复制了原立面的轮廓，延续了街道特有的三分结构，并保持了场地的整体特点。装饰物和材料的规模、尺寸、类型和颜色都经过精心调配，与周边建筑物保持协调，实现了传统与现代建筑的无缝融合。

Studio RAP has replicated the silhouette of the original facade, continuing the characteristic tripartite structure of the street and maintaining the overall character of the site. The scale, size, type, and color of the ornaments and materials are all carefully synced with the neighbouring buildings to allow a seamless integration of traditional and contemporary architecture.

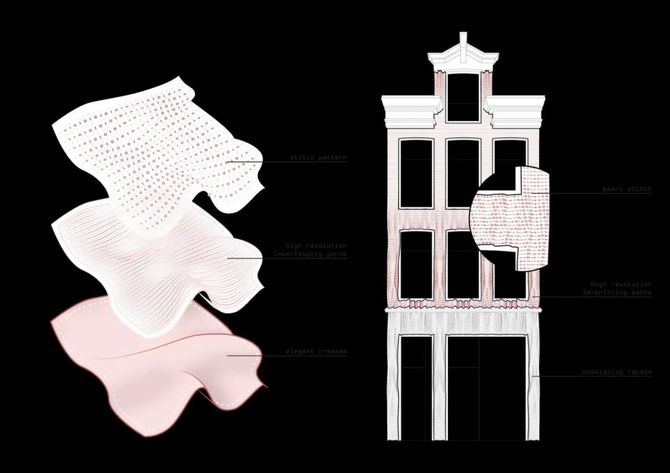

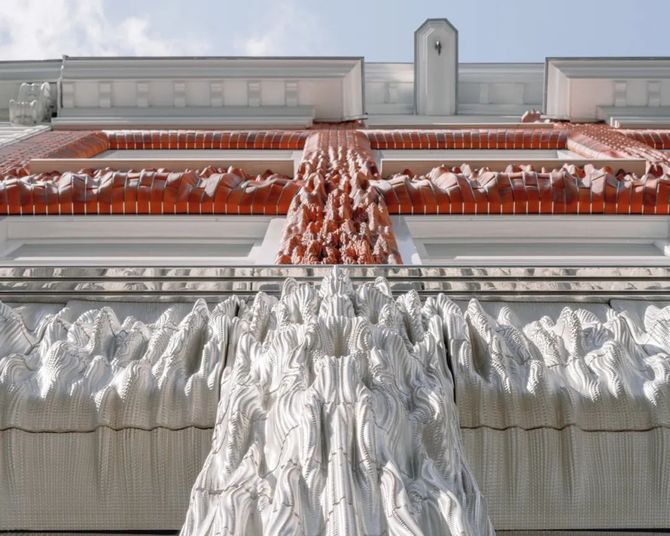

该立面设计采用了受纺织品启发的精细图层，包括优雅的褶痕、交织的纱线和刺绣图案。它呈现出有机的波浪状特质，当观者从不同角度接近设计时，会有不同的变化。随着视线的移动，定制陶瓷瓷砖中的新元素逐渐展现出来，使得这家奢华精品店在与历史环境和周围建筑物协调一致的同时，独具一格地脱颖而出。

The design of the façade features intricate layers inspired by textiles—elegant creases, interlooping yarns, and stitch patterns. Its organic, wave-like quality changes as viewers approach the design from different angles. Gradually, as the line of vision moves, new elements within the custom ceramic tiles are unveiled, resulting in a luxury boutique that harmonizes with its historical environment, while standing out among the surrounding buildings.

开创性的 3D 打印瓷砖

Pioneering 3D-Printed CeramicTiles

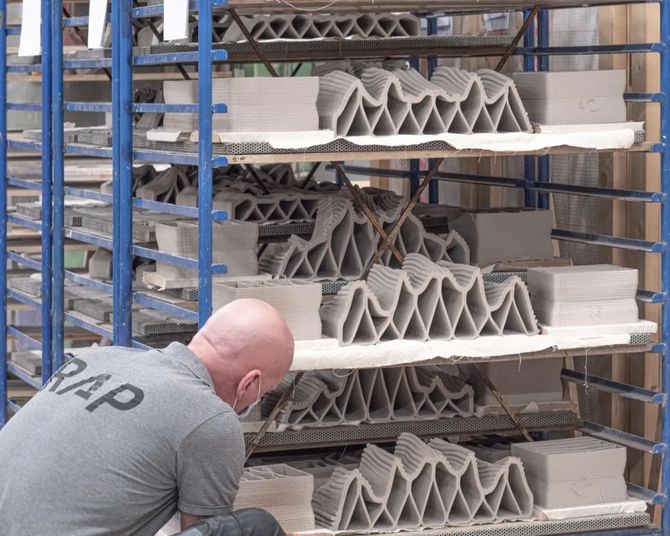

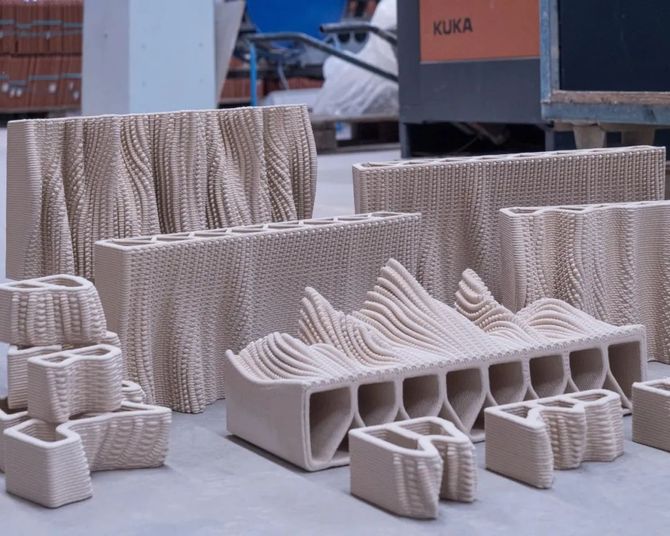

Studio RAP从荷兰的国家博物馆Rijksmuseum中汲取灵感，该博物馆以其来自全球各地的多样化陶瓷收藏而闻名。Studio RAP利用他们自家的大规模3D打印技术实现了高度差异化和经过算法设计的细节。这一创新方法突显了Studio RAP推动建筑设计边界的承诺。Studio RAP在数年间开发了独特的数字制造过程，包括创建先进的机器人系统。建筑师团队与这些机器人紧密合作，精确地制作复杂的陶瓷设计，展示了工作室在建筑设计方面追求卓越的承诺。

Drawing inspiration from the Rijksmuseum, the national museum of the Netherlands celebrated for its diverse ceramic collection from across the globe, Studio RAP employs their in-house, large-scale 3D-printing technology to realize highly differentiated and algorithmically designed details. This innovative approach underscores Studio RAP's commitment to pushing the boundaries of architectural design. Studio RAP has developed a distinctive digital fabrication process over several years, including the creation of advanced robotic systems. The team of architects collaborates seamlessly with these robots to precisely craft intricate ceramic designs, showcasing the studio's commitment to excellence in architectural design.

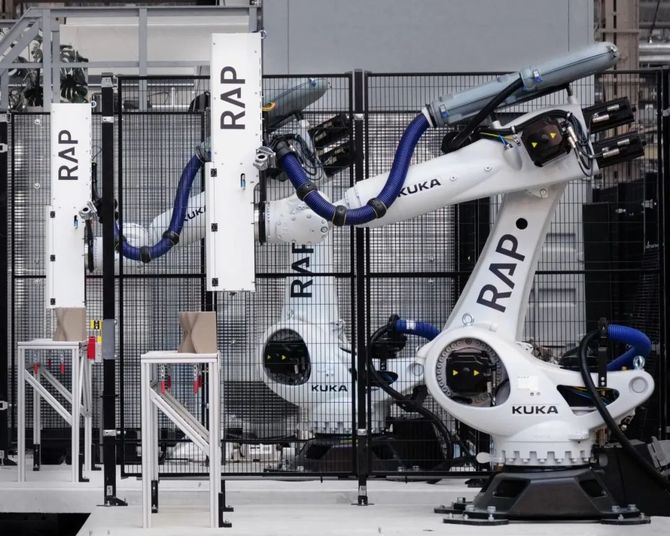

▽大型3D打印机器人系统，Large 3D printing robot system

手工玻璃

Artisanal Glazing

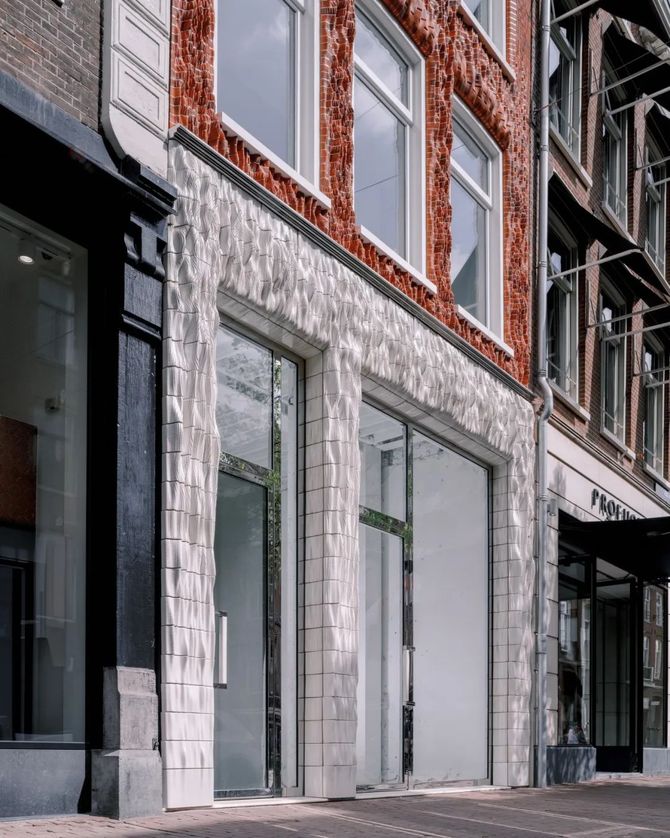

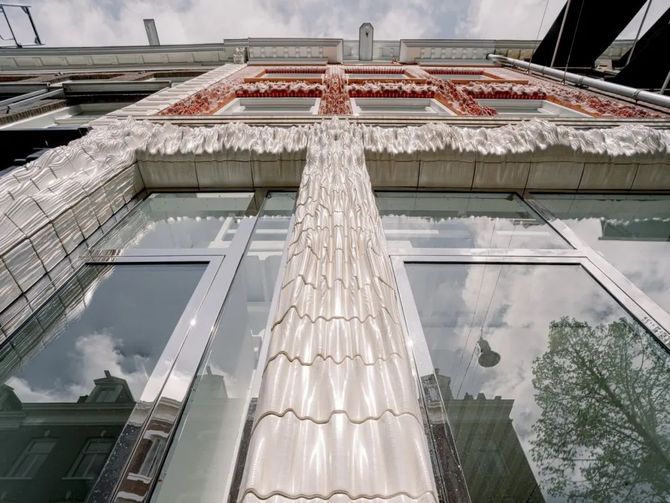

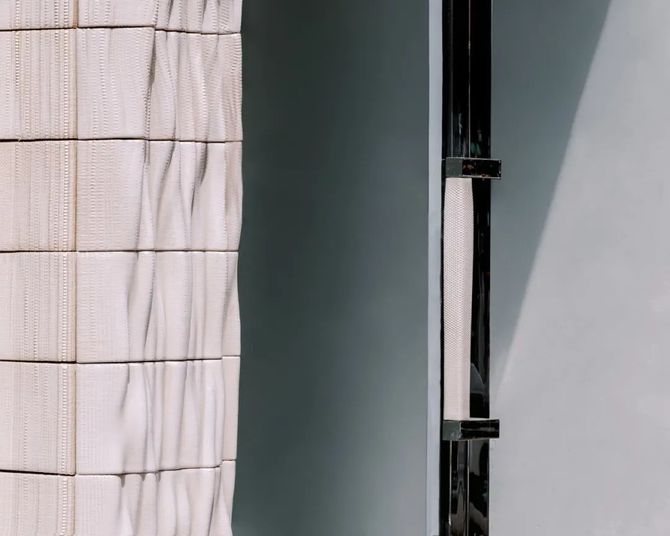

在街道层面上，立面采用了大尺寸的3D打印陶瓷瓷砖，每块瓷砖尺寸约为40x20厘米，由皇家蒂舍拉公司采用珍珠白釉，略带一丝微黄色。这些瓷砖在视线高度处具有视觉表现力，与地面平齐对齐时无缝过渡，创造出和谐而精细的美感。

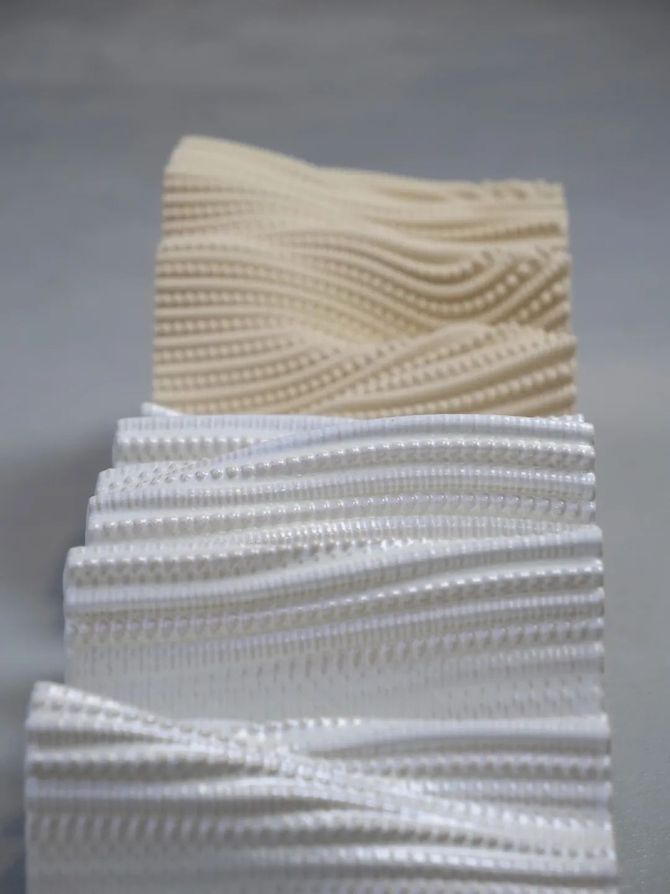

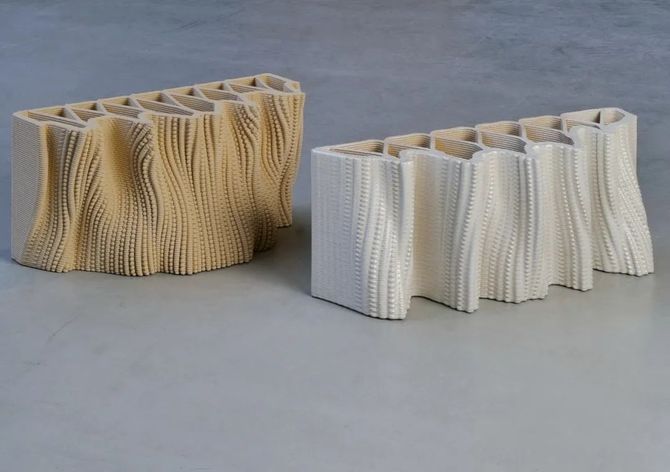

At street level, the facade features large 3D-printed ceramic tiles, approximately 40x20cm each, glazed in pearl white, with a subtle touch of yellow, by Royal Tichelaar. These tiles are designed to be visually expressive at eye level, seamlessly transitioning to a flush alignment as they meet the ground, creating a harmonious and detailed aesthetic.

经Royal Tichelaar手工上釉, glazed in pearl white with a subtle touch of yellow by Royal Tichelaar

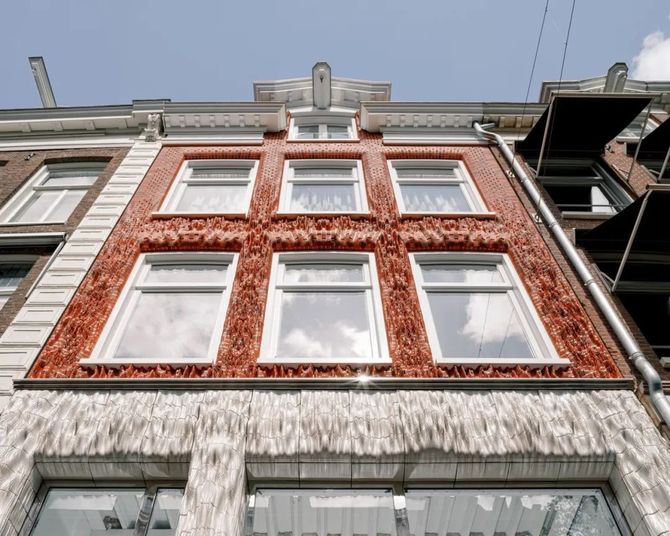

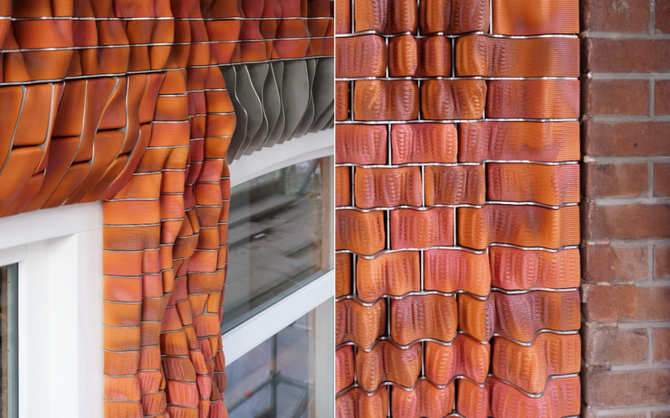

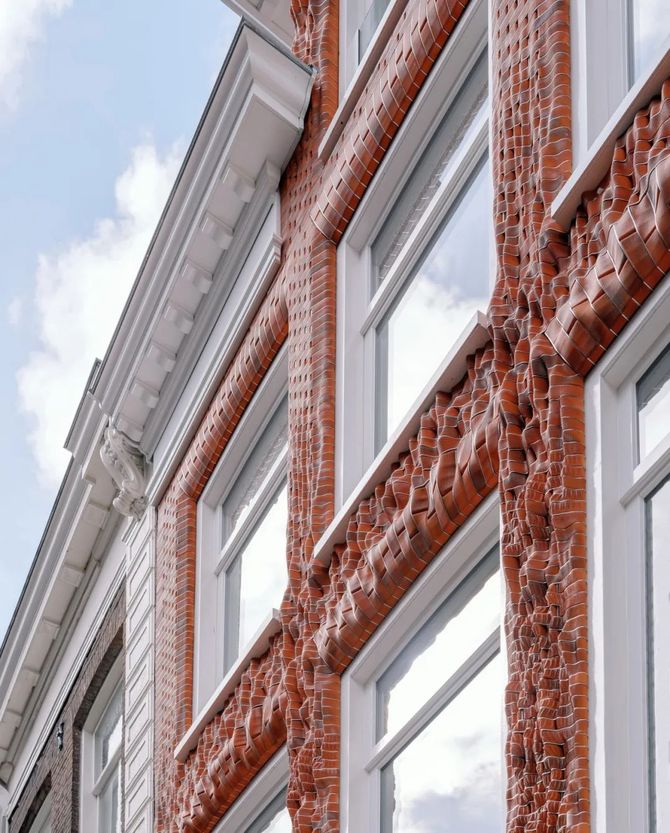

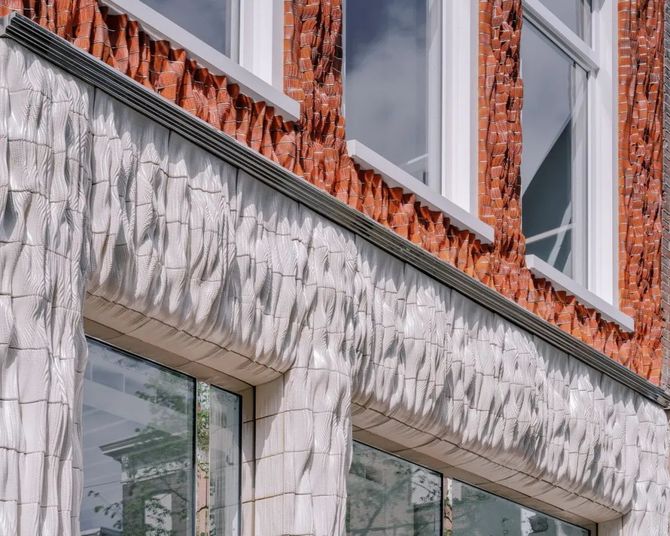

在较高楼层，建筑立面展示了采用三种明显不同的红色釉料进行涂釉的3D打印砖块。这些砖块与原有的砖穴交叉结合，并具有随着高度逐渐减弱的抽象装饰。这些砖块被放置在激光切割的不锈钢盒子中，呼应原始的盒芯。

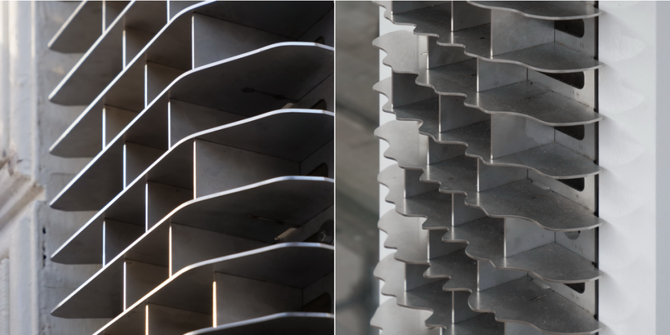

On the higher floors, the building facade showcases 3D-printed bricks glazed in three distinct shades of red. The bricks are composed alongside the original masonry cross bond and have abstract ornamentation that fades as they travel higher. These bricks are put into laser-cut stainless steel cassettes, referring to the original flushes.

Technical sheet

Project Name: Ceramic House

Location: P.C. Hooftstraat, Amsterdam (NL)

Client: Warenar Real Estate

Architect: Studio RAP

Co-Architect: Gietermans & Van Dijk

Contractor facade cladding / 3d-ceramic-printing: Studio RAP

Firing and glazing: Royal Tichelaar

Main contractor: Wessels Zeist (VolkerWessels)

Photographer: Studio RAP / Riccardo De Vecchi

Film: Oculus Film
